Comptuing and Storage Resources in GSDC TEM

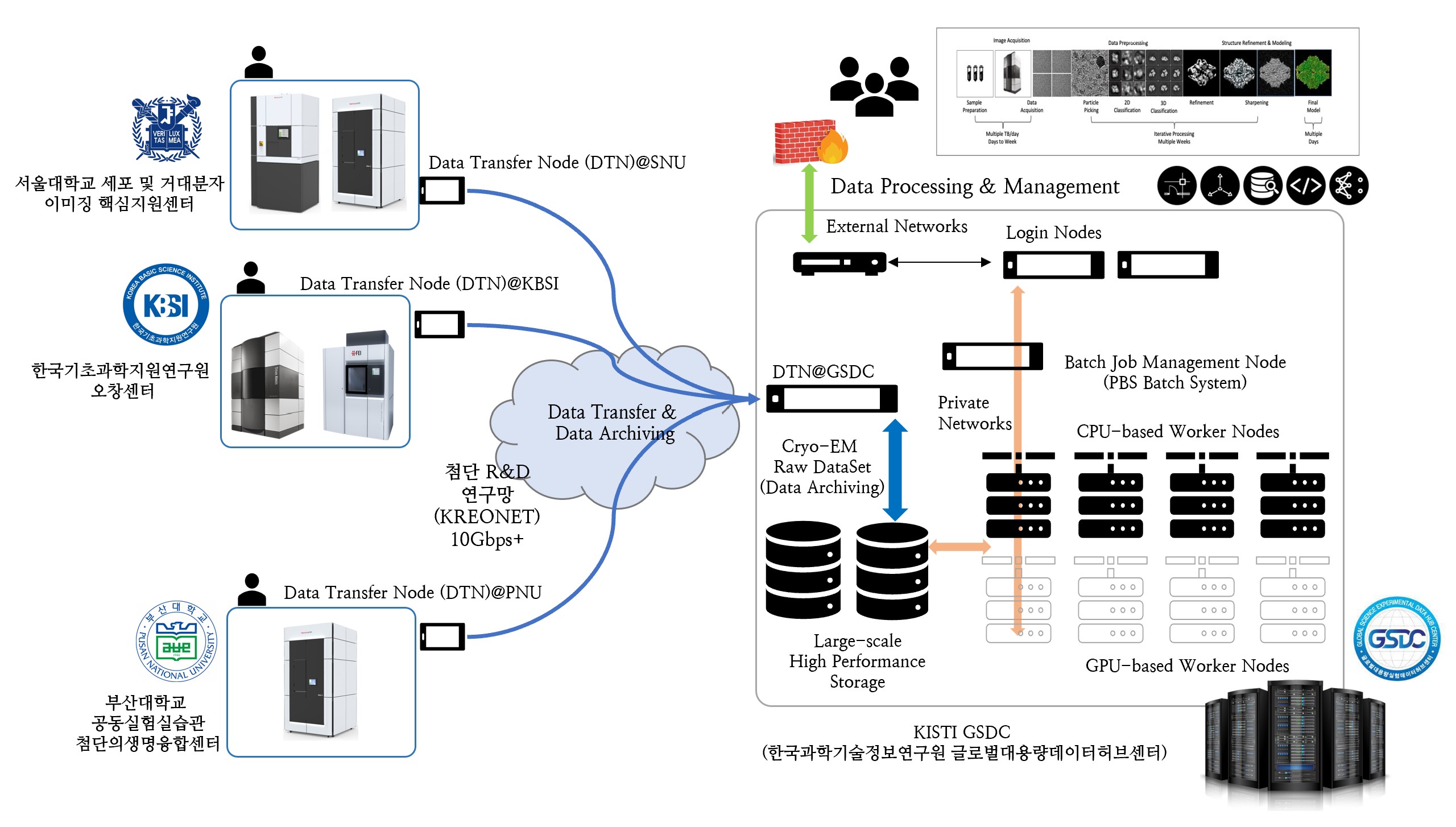

Overall architecture of GSDC TEM Comptuing and Storage Resources (including Data Transfer Nodes)
Login Servers
| Server Name | Specification | Remarks |
|---|---|---|
| tem-ui-al9.sdfarm.kr | Intel Xeon 3.1GHz 18Core * 2CPUs, 384GB Memory | 72 Cores (w/ HT) |
| tem-cs-al9.sdfarm.kr | Intel Xeon 2.7GHz 18Core * 2CPUs, 384GB Memory | 72 Cores (w/ HT) |
Data Transfer(Mover) Servers
| Server Name | Specification | Remarks |
|---|---|---|
| tem-dm-al9.sdfarm.kr | Intel Xeon 3.1GHz 18Core * 2CPUs, 384GB Memory | SFTP, GridFTP |
| tem-dtn-al9.sdfarm.kr | Intel Xeon 2.7GHz 18Core * 2CPUs, 384GB Memory | Rclone, GridFTP |
Batch System Server
| Server Name | Specification | Remarks |
|---|---|---|
| tem-ce-al9.sdfarm.kr | Intel Xeon 2.7GHz 18Core * 2CPUs, 384GB Memory | PBSPro batch scheduler |
Computing Resources
| Server Name | Specification | Remarks |
|---|---|---|
| tem-cpu[00-13]-al9.sdfarm.kr | Intel Xeon 2.6GHz 14Core * 2CPUs, 192GB Memory | 364 Cores total |
| tem-gpu[01-02,05-12]-al9.sdfarm.kr | 256~384GB Memory Nvidia P40, P100, V100, A100 GPUs |
300 Cores total 26 GPUs total |
Storage Resources
| Category | Specification | Remarks |
|---|---|---|
| Users Home Directory | 100GB / each account(ID) | /tem/home/UserID |
| Scratch Directory | 80TB / each research group | /tem/scratch/GroupDir |
| Archiving Directory | 500TB / each Cryo-EM site | /tem/archive/SiteDir |
